SkyRC Q200 QUATTRO AC/DC 2X100W 2X50W Lipo Battery Balance Charger Discharger

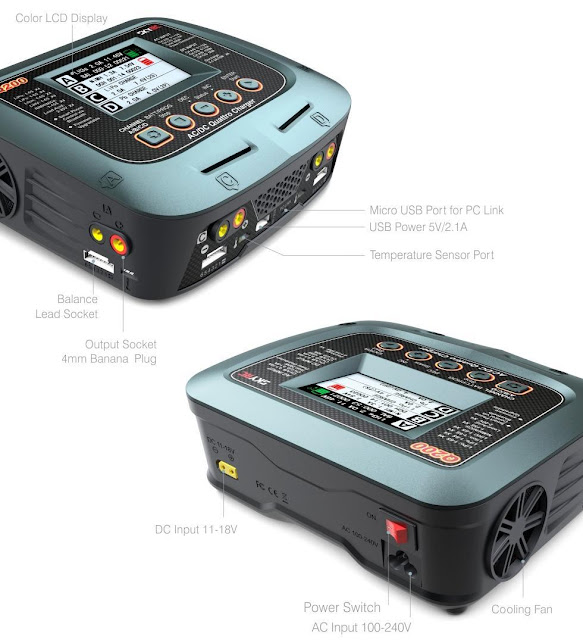

SkyRC Q200 is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480×320 color LCD display, and paired channels (A&C or B&D) support power distribution in AC mode. Moreover, users could either connect it to PC or mobile device to further expand their using experience. Firmware upgrade is available via PC software interface.
Descirpion:
Brand Name: SkyRC
Item Name: Balance Charger Discharger
Item No.: Q200
Input Voltage : AC100-240V / DC 11 -18V
Charge Circuit Power
DC Input :CH A/CH B: 100W CH C/CH D: 50W
AC Input : CH A+CH C=100W CH B+CH D=100W CH A/CH B: 50-100W CH C/CH D: 0-50W
Discharge Circuit Power : 4 x 10W
Charge Current Range : CH A/CH B 0.1-10A CH C/CH D 0.1-5A
Discharge Current Range : 0.1-2Ax 4
Current Drian for Balancing : Max 200mA/cell
Trickle Charging Current : 50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count : 1-6 Cells
NiMH/NiCd Battery Cell Count : 1-15 Cells
Pb Battery Voltage : 2-20V
Dimension : 197x182x71mm
Weight : 1325g
Features:
Large screen LCD
Terminal Voltage Control
Re-peak Mode for NiMH/NiCd Battery
Battery Meter
Battery Internal Resistance Meter
PC Communications: USB Port for PC Control & Firmware Upgrade
Smart Phone Control & Monitor Via Wi-Fi Module( SK-600075 Optional Part)
Four channels charge four different kinds of batteries simultaneously
Support charging power distribution intellectively when operating with AC input
Functions:
Power Distribution
In AC mode, it supports power distribution, for example, Channel A = 65W and C = 35W, then Channel B = 80W and D = 20W, the total power is 200W.
4 Charging Qutputs
The charger can handle up to four different battery types at the same time and charge them simultaneously.
As well it has a LIHV Mode Available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.
Charge Master
The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".
Finally, Your Charger Gets Its Own App
Smart Phone Control via Wi-Fi Module (both iOS and Android) This charger can be controlled and operated by smart phones via Wi-Fi module (optional part SK-600075) or Bluetooth.
Q200 User Manual, Click here
Package included:
1x SkyRC Q200 Balance Charger/Discharger
SkyRC Q200 QUATTRO AC/DC 2X100W 2X50W Lipo Battery Balance Charger Discharger
SkyRC Q200 is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480×320 color LCD display, and paired channels (A&C or B&D) support power distribution in AC mode. Moreover, users could either connect it to PC or mobile device to further expand their using experience. Firmware upgrade is available via PC software interface.
**Now you can get the SKYRC Q200 at the price of 159.99USD after Coupon Code: q200
Free worldwide shipping !
Brand Name: SkyRC
Item Name: Balance Charger Discharger
Item No.: Q200
Input Voltage : AC100-240V / DC 11 -18V
Charge Circuit Power
DC Input :CH A/CH B: 100W CH C/CH D: 50W
AC Input : CH A+CH C=100W CH B+CH D=100W CH A/CH B: 50-100W CH C/CH D: 0-50W
Discharge Circuit Power : 4 x 10W
Charge Current Range : CH A/CH B 0.1-10A CH C/CH D 0.1-5A
Discharge Current Range : 0.1-2Ax 4
Current Drian for Balancing : Max 200mA/cell
Trickle Charging Current : 50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count : 1-6 Cells
NiMH/NiCd Battery Cell Count : 1-15 Cells
Pb Battery Voltage : 2-20V
Dimension : 197x182x71mm
Weight : 1325g
Features:
Large screen LCD
Terminal Voltage Control
Re-peak Mode for NiMH/NiCd Battery
Battery Meter
Battery Internal Resistance Meter
PC Communications: USB Port for PC Control & Firmware Upgrade
Smart Phone Control & Monitor Via Wi-Fi Module( SK-600075 Optional Part)
Four channels charge four different kinds of batteries simultaneously
Support charging power distribution intellectively when operating with AC input
Functions:
Power Distribution
In AC mode, it supports power distribution, for example, Channel A = 65W and C = 35W, then Channel B = 80W and D = 20W, the total power is 200W.
4 Charging Qutputs
The charger can handle up to four different battery types at the same time and charge them simultaneously.
As well it has a LIHV Mode Available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.
Charge Master
The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".
Finally, Your Charger Gets Its Own App
Smart Phone Control via Wi-Fi Module (both iOS and Android) This charger can be controlled and operated by smart phones via Wi-Fi module (optional part SK-600075) or Bluetooth.
Q200 User Manual, Click here
Package included:
1x SkyRC Q200 Balance Charger/Discharger
